128X64 SPI Chip On Glass LCD Display With White Side Backlight HTG12864I

Name: 128X64 SPI Chip On Glass LCD Display With White Side Backlight HTG12864I
Brand: HOTHMI
Price: 1 USD

Buy cheap 128X64 SPI Chip On Glass LCD Display With White Side Backlight HTG12864I product

Brand Name : HOTHMI

Model Number : HTG12864I-SPI

Place of Origin : Dongguan, China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product type : Graphic COG

Show contents : 128x64 dot

Outline size(mm) : 71.3x52.2x5.3mm

Size of View Window(mm) : 65.5x38mm

Display size(mm) : 60.775x32.935mm

Point spacing(mm) : 0.45x0.49mm

Visual angle : 6H

Connection PIN Number : 10PIN

Interface mode : SPI

Working temperature : -20~70℃

Power supply voltage : 3.3（V）

Driver chip model : ST7567 IC

Contact Now

128X64 SPI Graphic COG LCD ST7567 | FSTN-Display With White Side Backlight/HTG12864I

HTG12864I-SPI | Monochrome Graphic COG | 128x64 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Display

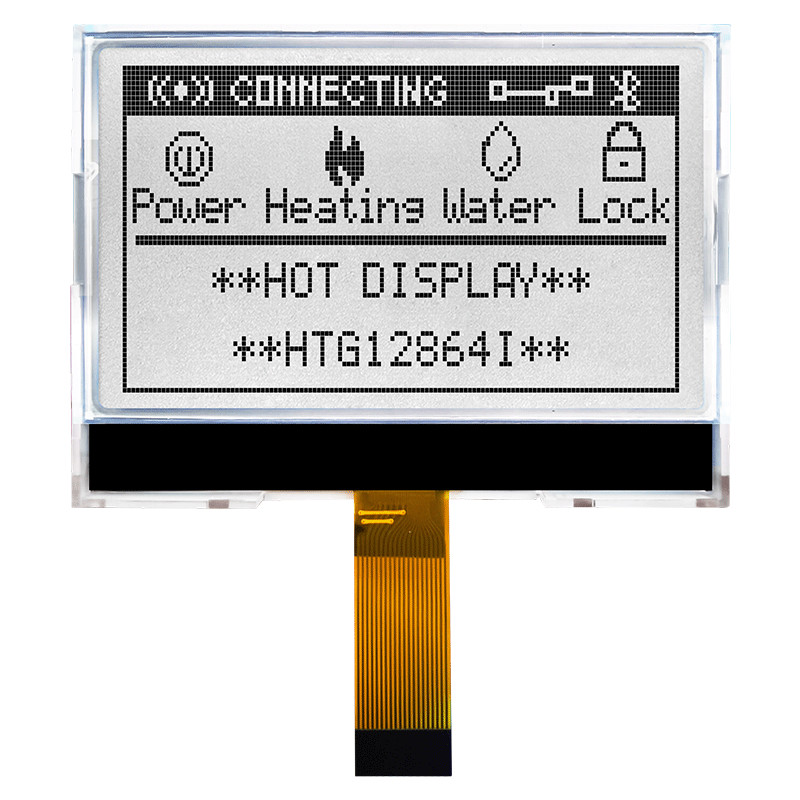

HOTLCD 128x64 graphic Chip-On-Glass (COG) Liquid Crystal Display shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTG12864I-SPI display has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant. This display comes with a built-in ST7567 controller.

Product parameters

ITEM	STANDARD VALUE	UNIT
Number of dots	128x64	dots
Module dimension	71.3x52.2x5.3mm	mm
View display area	65.5x38mm	mm
Dot size	0.45x0.49mm	mm
Dot pitch	0.47x0.52mm	mm
Operating temp	-20~70	℃
Storage temp	-30~80	℃
Driving Method	1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
Viewing direction	6H o'clock
Display mode	FSTN
Display type	TRANSMISSIVE / NEGATIVE
Driver IC	ST7567 IC
Backlight	WHITE
Product application	industrial control

All Products

Reliability Testing	Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
Glass Cleanliness	Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
Bezel Appearance	Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB Appearance	PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
Soldering	Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.

COG LCD Displays

Available in character and graphic formats, COG (Chip-On-Glass) LCD Displays are designed without a PCB. The LCD driver/controller is bonded directly to the glass of the display. This allows COG displays to be smaller in size, more cost effective and a highly customizable display solution compared to typical LCD modules with a board.

Search Keyword: lcd 128x64, lcd 128 x 64, 128x64 lcd, 128 x 64 lcd

128X64 SPI Chip On Glass LCD Display With White Side Backlight HTG12864I

LCD Custom Solutions

Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

128X64 SPI Chip On Glass LCD Display With White Side Backlight HTG12864I

Connector Customization

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

Interface Customization

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.

PCB Modifications

Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.

128X64 SPI Chip On Glass LCD Display With White Side Backlight HTG12864I

HTG12864I-31W-10C10-SPI.pdf
